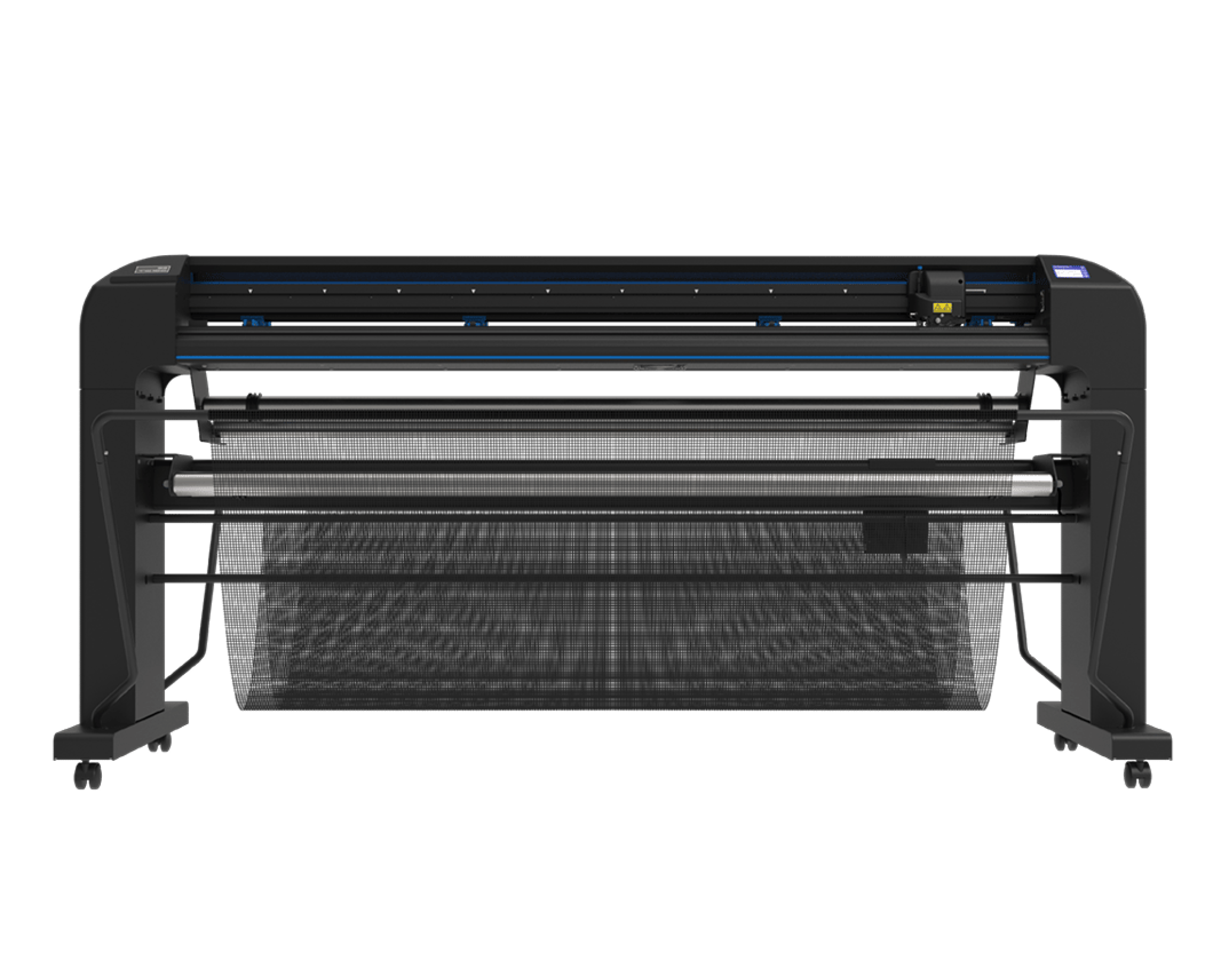

Summa S3 T160

Tangential Knife – Roll Cutter

The Summa S3 T160 is the largest roll cutter size in the S Class 3 Series and is tailored to the professional user who wants maximum flexibility in the possible applications and
desires the most advanced technology and features. Rely on leading-edge cutting performance and cutting excellence with the S Class 3.

Available Models:
S3 75 | S3 120 | S3 140 | S3 160

ENQUIRE NOW

At a glance.

Key Features

The Summa S3 T160 is perfect for professionals that want maximum versatility and productivity. With the capability to handle media up to 158cm (+7cm in oversized mode), it’s ideal for large-format projects. Equipped with advanced cutting technology with a tangential knife, it allows for more control and pressure, ensuring precision and efficiency in every cut.

Unlock the power of full automation with the Summa S3 160. By simply placing a printer in front of the roll cutter, you can achieve seamless transitions from printing to cutting without any intervention. Moreover, by opting for the roll-up unit, you can neatly roll up the processed material instead of letting it fall into the basket.

Need even more cutting power? The Twin X functionality offers the ultimate solution by seamlessly integrating the Summa S3 160 with the F1612 flatbed cutter. This dynamic duo will optimise your workflow efficiency and elevate your business to unparalleled heights.

Benefits

Connectivity options
Summa GoSign software
Combining Cut & Crease and OPOS (TC)
Tangential knife technology
Indicator light
Advanced throughcut functionality
Camera or Sensor recognition of registration marks
Barcode functionality for automation
Twin X functionality
Roll-up system

Product Specifications.

Dimensions

Dimensions: 225 x 69 x 111 cm

Media

Width: 17 to 168 cm
Max Working Width (Oversized Mode): 158 cm x 50 m
Thickness: 0.05 mm to 0.25 mm / Up to 0.8 mm with sandblast drag knife / Up to 1.2 mm with sandblast tangential knife

Speed

Speed: Up to 1440 mm/s diagonal

Accuracy

Accuracy: 0.2% of move or 0.25 mm, whichever is greater

Knife Pressure

Knife Pressure:Tangential Knife: Up to 1000 grams

1 2 3 4

Brochure Case Study Enquire

Summa Vinyl Cutter Comparison

		S One D Series	S Class 3 D Series	S Class 3 T Series	S Class TC Series
MAX. MEDIA SIZE	60	70.5 cm	–	–	–
MAX. MEDIA SIZE	75	–	84 cm	84 cm	84 cm
MAX. MEDIA SIZE	120	135 cm	130 cm	130 cm	–
MAX. MEDIA SIZE	140	150 cm	145 cm	145 cm	–
MAX. MEDIA SIZE	160	169 cm	168 cm	168 cm	168 cm
Cutting technology		Drag Knife	Drag Knife	True Tangential Knife	True Tangential Knife
Opos alignment Systems		✔	✔	✔	✔
Camera (USB)		–	–	–	✔
Barcode Support		✔	✔	✔	✔
Roll-up		–	Optional	Optional	Optional
Speed		***	****	*****	*****
Flexible Working Sizes		✔	✔	✔	✔
