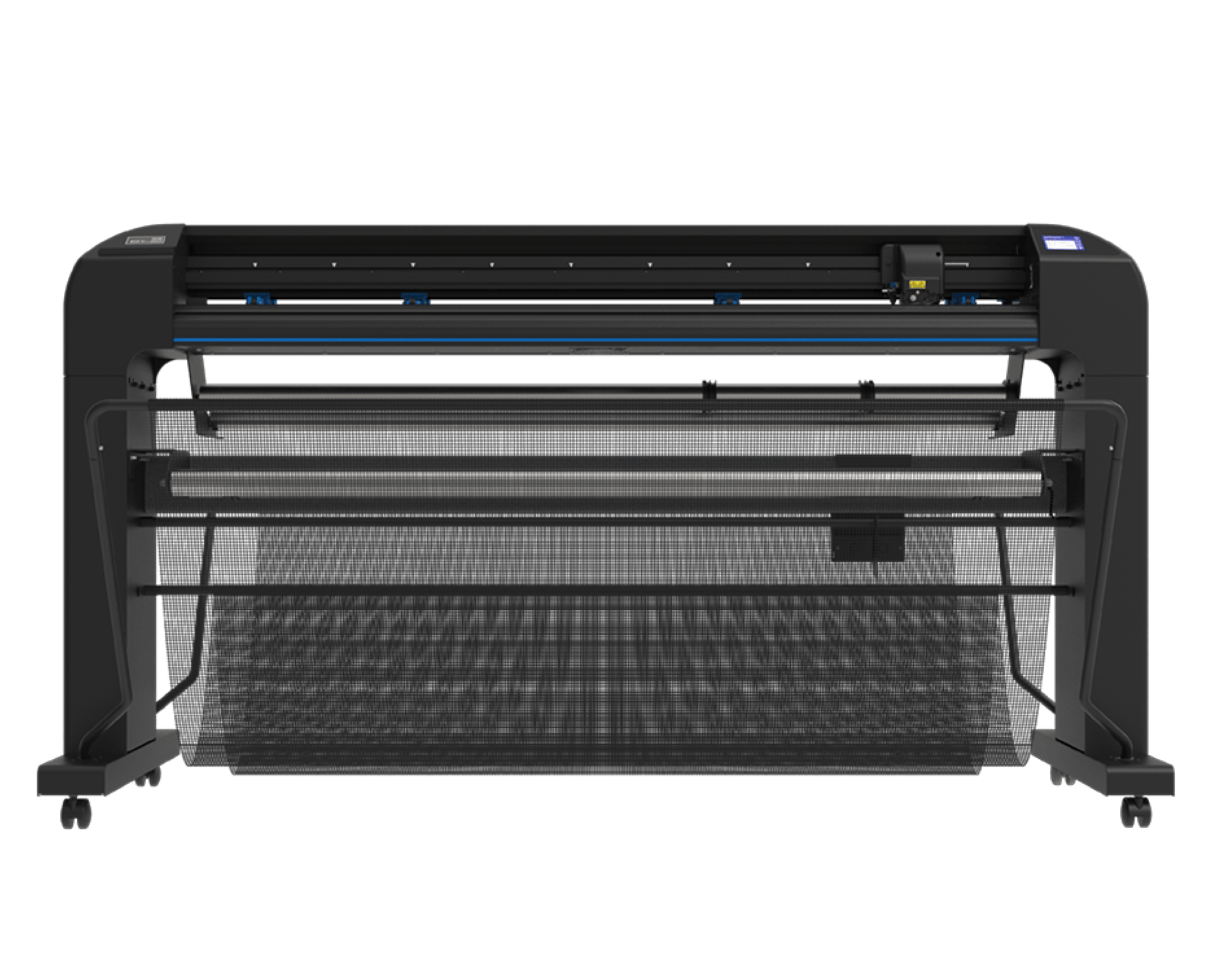

Summa S3 D140

Drag Knife – Roll Cutter

This mid-size cutter in the S Class 3 Series the Summa S3 D140 enables a larger media width offering more versatility in the cutting applications. With unparalleled technology and reliability, this Drag knife cutter delivers leading-edge performance and precision. Fast and straightforwardly.

Available Models:
S3 D75 | S3 D120 | S3 D140 | S3 D160

ENQUIRE NOW

At a glance.

Key Features

The Summa S3 D140 provides enhanced cutting versatility and limitless creative possibilities. Capable of handling media up to 135cm (142cm in oversized mode), it easily tackles larger projects. The integration of barcode functionality and a best-in-class OPOS sensor delivers exceptional productivity and precision, ensuring faster and more accurate reading speeds. This combination boosts efficiency while maintaining reliable through cuts.

The roll cutter also contains the latest alignment methods and advanced cutting techniques to ensure flawless edges and precision cut graphics. The cutter operates with seamless efficiency, elevating your productivity and streamlining your workflow.

To streamline your workflow even more, you can opt for the roll-up unit, which rolls up your processed materials again instead of dropping them in the basket.

Benefits

Advanced cutting technology
Ergonomic design
User-friendly features
Latest alignment method
Legendary tracking performance
Connectivity options
Summa GoSign software
Drag knife technology
Indicator light
Advanced throughcut functionality
Camera or Sensor recognition of registration marks
Barcode functionality for automation
Twin X functionality
Roll-up system

Product Specifications.

Dimensions

Dimensions: 202 x 69 x 111 cm

Media

Width: 17 to 145 cm
Max Working Width (Oversized Mode): 135 cm x 50 m
Thickness: 0.05 mm to 0.25 mm / Up to 0.8 mm with sandblast drag knife / Up to 1.2 mm with sandblast tangential knife

Speed

Speed: Up to 1440 mm/s diagonal

Accuracy

Accuracy: 0.2% of move or 0.25 mm, whichever is greater

Knife Pressure

Knife Pressure: Drag Knife: Up to 400 gram

1 2 3 4

Brochure Case Study Enquire

Summa Vinyl Cutter Comparison

		S One D Series	S Class 3 D Series	S Class 3 T Series	S Class TC Series
MAX. MEDIA SIZE	60	70.5 cm	–	–	–
MAX. MEDIA SIZE	75	–	84 cm	84 cm	84 cm
MAX. MEDIA SIZE	120	135 cm	130 cm	130 cm	–
MAX. MEDIA SIZE	140	150 cm	145 cm	145 cm	–
MAX. MEDIA SIZE	160	169 cm	168 cm	168 cm	168 cm
Cutting technology		Drag Knife	Drag Knife	True Tangential Knife	True Tangential Knife
Opos alignment Systems		✔	✔	✔	✔
Camera (USB)		–	–	–	✔
Barcode Support		✔	✔	✔	✔
Roll-up		–	Optional	Optional	Optional
Speed		***	****	*****	*****
Flexible Working Sizes		✔	✔	✔	✔
