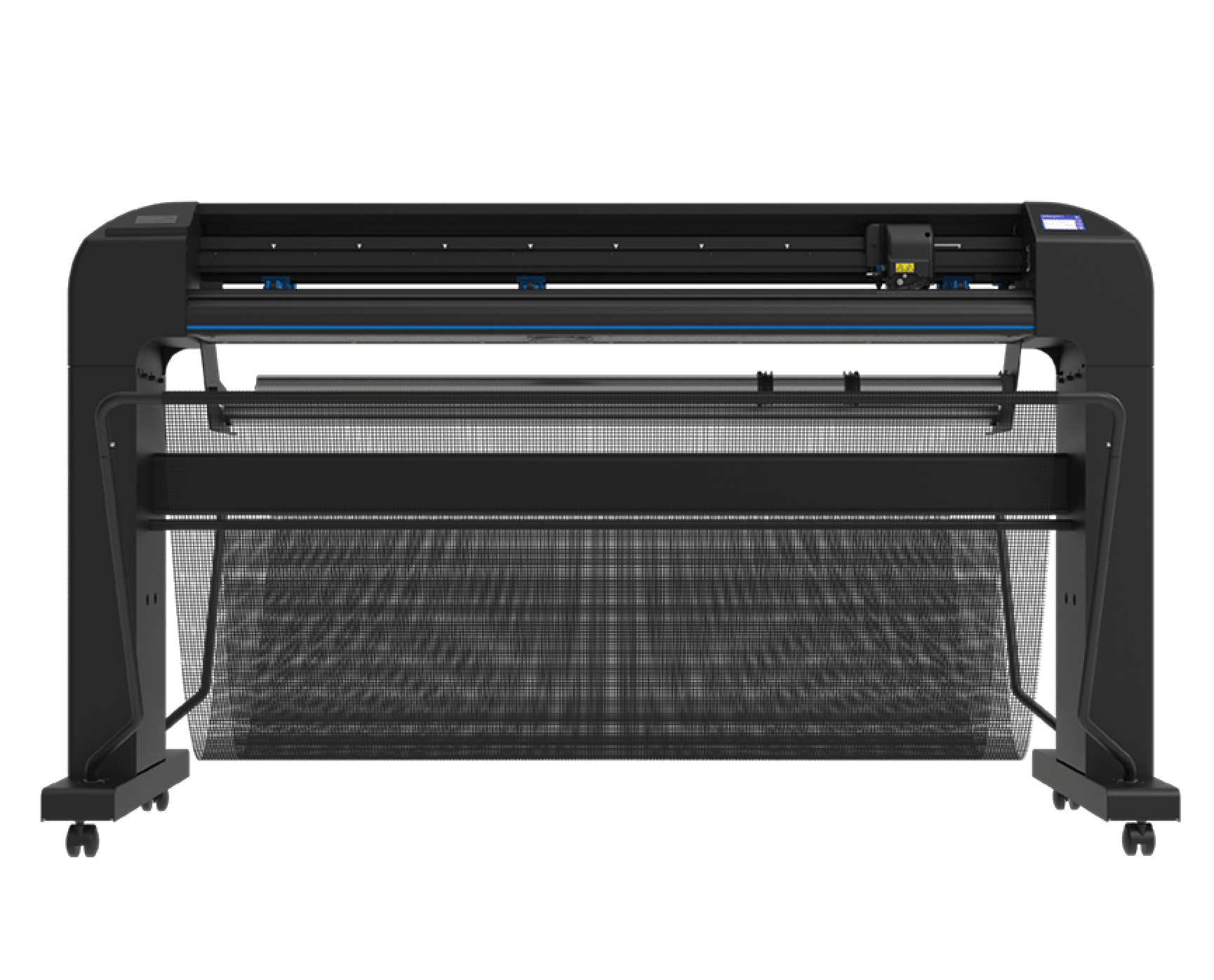

Summa S3 T120

Drag Knife – Roll Cutter

The Summa S3 D120 is the mid-size cutter in the S Class 3 Series, offering enhanced versatility for various cutting applications. Featuring cutting-edge technology and exceptional reliability, this cutter provides top-tier performance and precision, all while being fast and easy to use

Available Models:
S3 D75 | S3 D120 | S3 D140 | S3 D160

ENQUIRE NOW

At a glance.

Key Features

The Summa S3 D120 is an advanced mid-size model capable of handling media up to 120cm (127cm in oversized mode), making it perfect for medium-scale projects like non-prismatic traffic signs and internal signage. Featuring a drag knife, this roll cutter produces the sharpest corners and edges, ensuring meticulous and flawless results.

The Summa S3 D120 upgraded cutting power and fast throughput make this powerhouse the perfect addition to your workflow, increasing your Productivity, Performance, and Profitability.

Benefits

Advanced cutting technology
Ergonomic design
User-friendly features
Latest alignment method
Legendary tracking performance
Connectivity options
Summa GoSign software
Drag knife technology
Indicator light

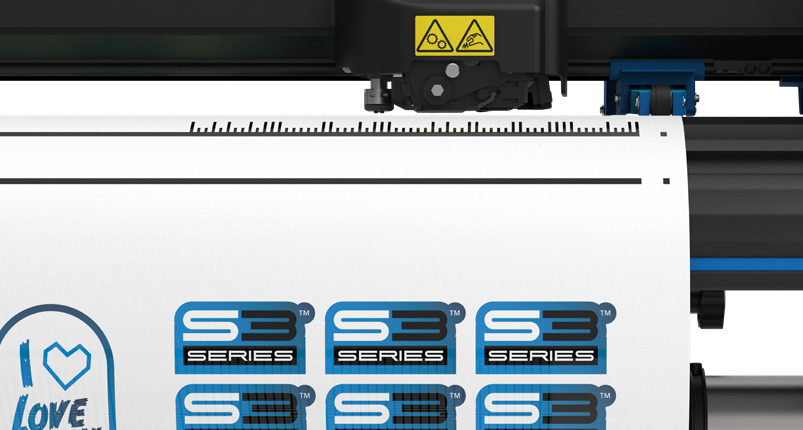

Camera or sensor recognition of registration marks
Barcode functionality for automation

Product Specifications.

Dimensions

Dimensions: 187 x 69 x 111 cm

Media

Width: 11.5 to 130 cm
Max Working Width (Oversized Mode): 120 cm x 50 m
Thickness: 0.05 mm to 0.25 mm / Up to 0.8 mm with sandblast drag knife / Up to 1.2 mm with sandblast tangential knife

Speed

Speed: Up to 1440 mm/s diagonal

Accuracy

Accuracy: 0.2% of move or 0.25 mm, whichever is greater

Knife Pressure

Knife Pressure: Drag Knife: Up to 400 gram

1 2 3 4

Brochure Case Study Enquire

Summa Vinyl Cutter Comparison

		S One D Series	S Class 3 D Series	S Class 3 T Series	S Class TC Series
MAX. MEDIA SIZE	60	70.5 cm	–	–	–
MAX. MEDIA SIZE	75	–	84 cm	84 cm	84 cm
MAX. MEDIA SIZE	120	135 cm	130 cm	130 cm	–
MAX. MEDIA SIZE	140	150 cm	145 cm	145 cm	–
MAX. MEDIA SIZE	160	169 cm	168 cm	168 cm	168 cm
Cutting technology		Drag Knife	Drag Knife	True Tangential Knife	True Tangential Knife
Opos alignment Systems		✔	✔	✔	✔
Camera (USB)		–	–	–	✔
Barcode Support		✔	✔	✔	✔
Roll-up		–	Optional	Optional	Optional
Speed		***	****	*****	*****
Flexible Working Sizes		✔	✔	✔	✔
