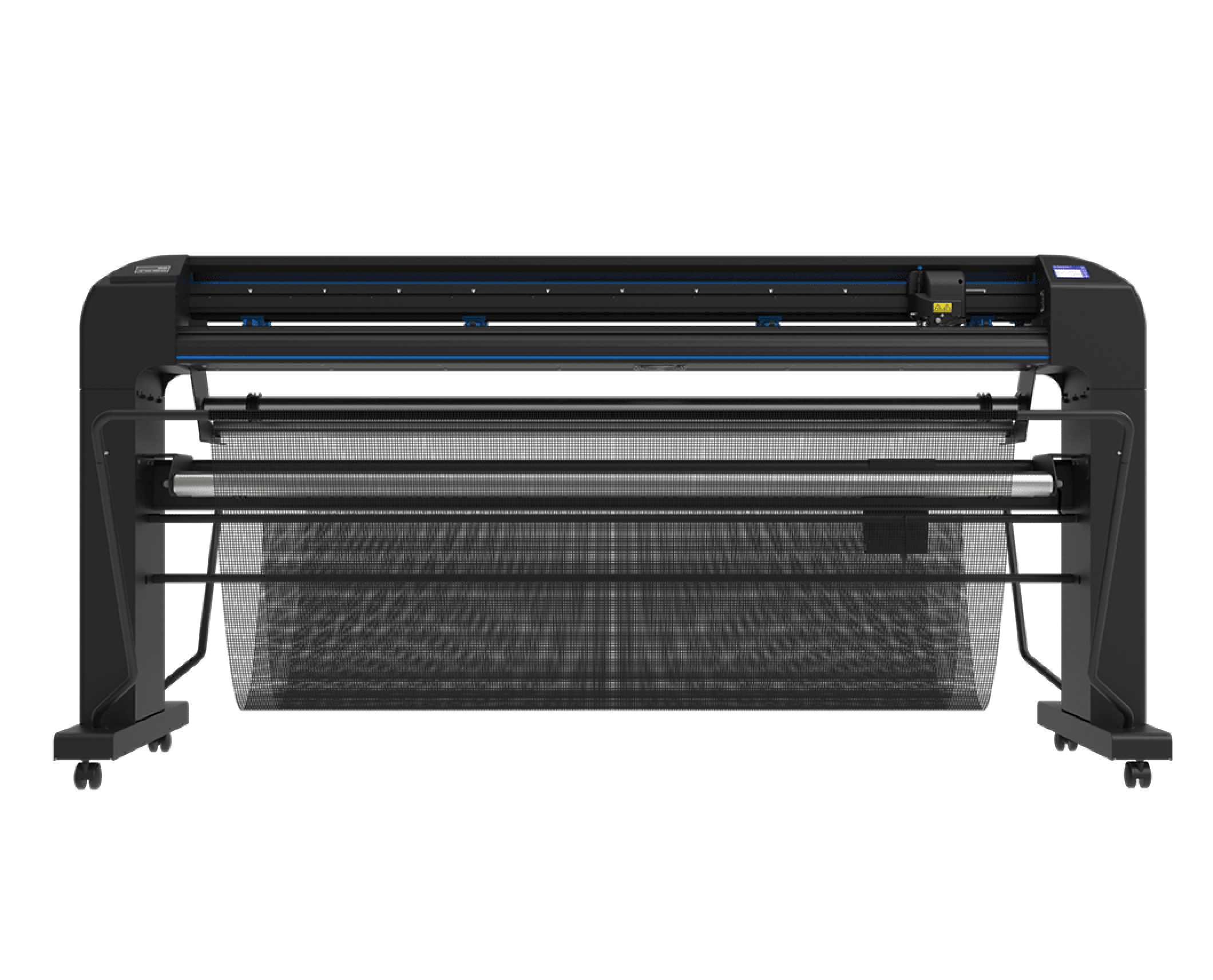

S Class 3 TC Series

True Tangential Knife

The Summa S Class 3 TC models are equipped with the most advanced cutting head in the Roll Cutter Series. The high-precision cutting head can now carry two tools, allowing Flex Cut and kiss-cut in combination with creasing or drawing. All without changing tools.

Available Models:
75 | 160

ENQUIRE NOW

At a glance.

Key Features

The Summa S Class 3 TC models feature an even more performant camera. Thanks to automatic data processing in the cutter instead of external software, the registration of marks is faster than ever before. Combined with our powerful True Tangential Cutting Technology and knife pressure of up to 1000 gr, these models are designed to deliver true cutting excellence.

Benefits

Unique True Tangential cutting technology
Higher accuracy by placing ‘in-field’ registration marks
Accurate fixed-size cutting with Fixed-size mode
Job segmentation to preserve the best tracking performance
Mark registration about 10 times faster than any other light sensor
Custom camera profile to process challenging media types
Available as a factory upgrade for Summa S Class 3 T75 & T160
Features Dual Head technology: knife + fibre pen or knife + creasing
tool

Product Specifications.

Dimensions

Dimensions: 141 x 69 x 111 cm

Media

Width: 6 to 84 cm
Max Working Width (Oversized Mode): 74.2 cm x 50 m
Thickness: 0.05 mm to 0.25 mm / Up to 0.8 mm with sandblast drag knife / Up to 1.2 mm with sandblast tangential knife

Speed

Speed: Up to 1440 mm/s diagonal

Accuracy

Accuracy: 0.2% of move or 0.25 mm, whichever is greater

Knife Pressure

Knife Pressure: Tangential Knife: Up to 1000 grams

1 2 3 4

Brochure Enquire

Summa Vinyl Cutter Comparison

		S One D Series	S Class 3 D Series	S Class 3 T Series	S Class TC Series
MAX. MEDIA SIZE	60	70.5 cm	–	–	–
MAX. MEDIA SIZE	75	–	84 cm	84 cm	84 cm
MAX. MEDIA SIZE	120	135 cm	130 cm	130 cm	–
MAX. MEDIA SIZE	140	150 cm	145 cm	145 cm	–
MAX. MEDIA SIZE	160	169 cm	168 cm	168 cm	168 cm
Cutting technology		Drag Knife	Drag Knife	True Tangential Knife	True Tangential Knife
Opos alignment Systems		✔	✔	✔	✔
Camera (USB)		–	–	–	✔
Barcode Support		✔	✔	✔	✔
Roll-up		–	Optional	Optional	Optional
Speed		***	****	*****	*****
Flexible Working Sizes		✔	✔	✔	✔
