COLDLAM 1650 Key Features
Features
– wide range of material and high flexibility
– electrical nip adjustment of 40 mm for precise operation
– variable roller technology for better processing of soft substrates

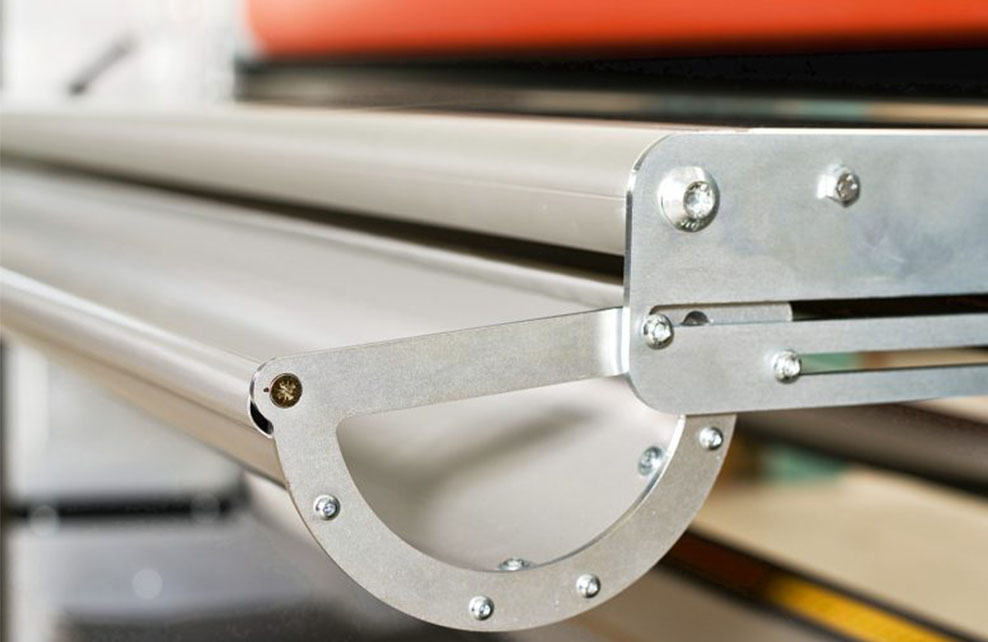

– flip up infeed table to facilitate easy setup
– pull-out trough for easy feeding of single prints up to 10 m

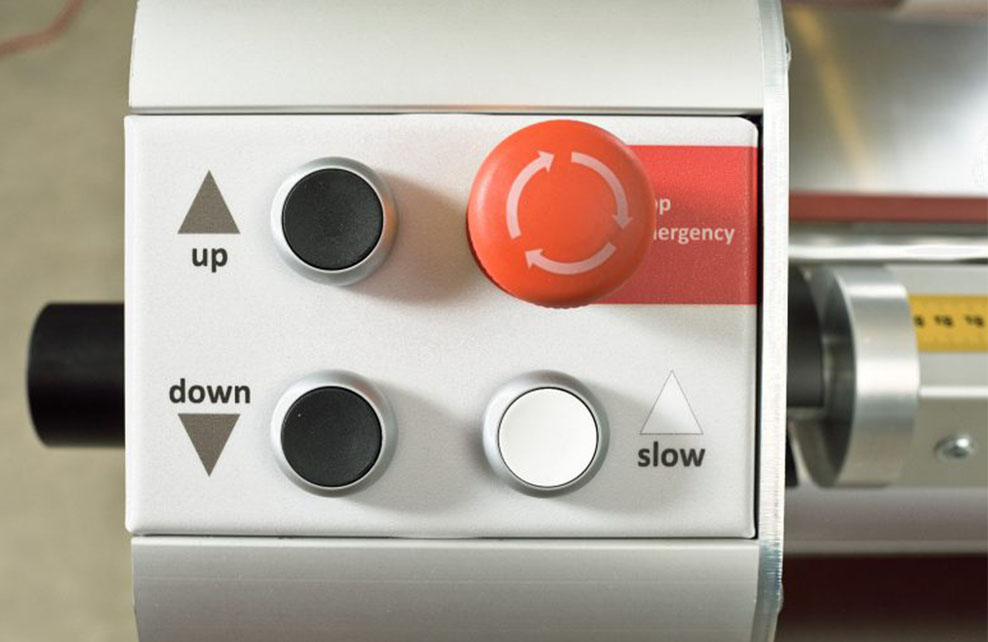

– additional control panel at the rear of the machine
– roll to roll built in
– outboard brakes for a better control of material unwind
– robust model range
– optional back table
Safety
– foot switch for hands free operation
– self-checking safety eyes for increased operator safety
– removable finger guard ledge
– CE certified
COLDLAM 1650 Technical Specifications
Maximum Working Width – 1650 mm
Maximum Speed – 8 m/Min.
Nip pressure – 1,6 N/mm²
Maximum Substrate Thickness – 40 mm
Roller Heating – heat assisted top roller
Maximum Roller Temperature – 70 °C
Width – 2175 mm
Height – 1320 mm
Depth – 550 mm / Incl. In-feed table – 750 mm
Table Height – 870 mm (on casting wheels, adjustable up to 950 mm)
Machine Weight – 400 kg
Shipping Weight – 470 kg
Shipping Dimensions – W/2300mm H/1550mm D/950mm
Electrical Requirements – 1N/PE 230VAC/50-60 Hz; 1800W 8A
