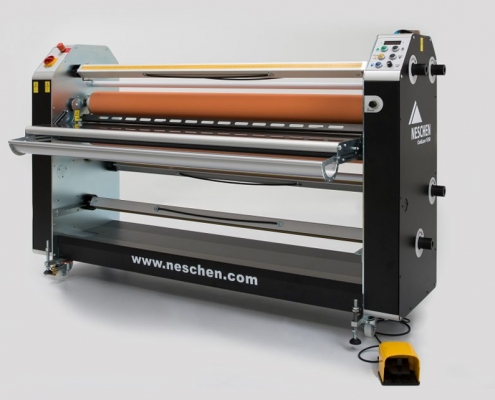

Neschen ColdLam 1650 Laminator

The Neschen ColdLam 1650 is perfect for mounting and laminating up to 1650 mm width. This machine includes a heated top roller, fully adjustable up to 70°C, for enhanced lamination.

Designed for basic applications, this device is particularly suitable for processing Pressure-sensitive products and offers a flexible and robust overall solution at an affordable price, with maximum functionality. Feeding table and unwinding tray facilitate handling with XL media.

TECH SPEC

GET A QUOTE

We offer finance so once you’ve found what you’re looking for then give us a call.

01483 596 200

Product Information

The Neschen ColdLam 1650 is perfect for mounting and laminating up to 1650 mm width. This machine includes a heated top roller, fully adjustable up to 70°C, for enhanced lamination. Suitable for a lot of different materials, like laminating- and mounting films.

The in feed table with a built-in adjustable trough, makes the handling of large-size media easier. The table swings up allowing full and easy access to the rollers when webbing the machine.

An additional control panel at the rear of the machine gives optimum output control and simplifies the webbing process even further.

Neschen ColdLam 1650 laminator features at a glance

Max. 1650 mm working width
Wide range of material and high flexibility
Maximum speed of 8 m/min for increased production capacity
Electrical nip adjustment of 40 mm for precise operation
Heated top roller (70°C) for superb lamination performance
Variable roller technology for better processing of soft substrates
Flip up infeed table to facilitate easy setup
Pull-out trough for easy feeding of single prints up to 10 m
Additional control panel at the rear of the machine
Roll to roll built in
Outboard brakes for a better control of material unwind
Robust model range
Optional back table

Safety

Foot switch for hands free operation
Self-checking safety eyes for increased operator safety
Removable finger guard ledge
CE certified
