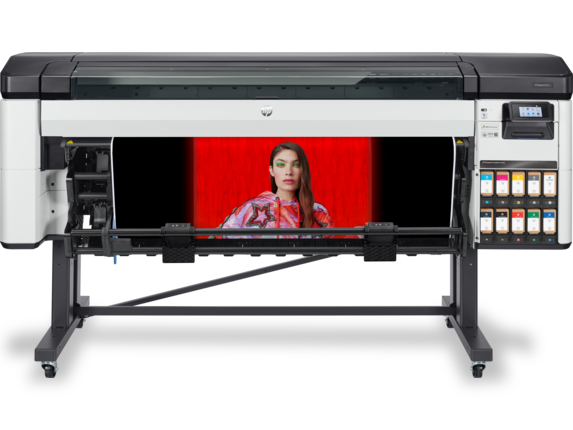

DesignJet Z9+ Pro

Highest professional photo quality
at top production speed

The HP DesignJet Z9+ Pro combines the widest colour gamut with exceptional speed to deliver professional-photo quality prints that exude vitality and precision, featuring remarkable colour accuracy, smooth gradients, and superior gloss consistency to captivate any audience.

Book a Demo

At a glance.

Speed

Produce more at a faster rate.
Print up to 18% faster with quality on satin photo media and 46% faster on canvas, increasing efficiency with the quickest media handling. You can boost productivity and uptime with recyclable 1-litre inks and universal HP HDNA printheads.

Print Vibrancy

Achieves the widest gamut in its category with chromatic RGB HP Vivid Photo Inks. Generate custom ICC proles and achieve colour accuracy, consistency with the embedded spectrophotometer. Get smooth gradients and reproduce distinct shades of colour with HP Pixel Control. In addition, you can add HP Gloss Enhancer kit for superior gloss uniformity.

large wide format indoor print applications, vinyl, canvas, banner, wallpaper, signage, photography, fine art

Productivity & Control

Enhance productivity and control with HP PrintOS. Manage print operations seamlessly, monitor performance, and make data-driven decisions using HP Print Beat. Share media presets remotely and gain visibility into operator routines with the HP Configuration Center. Stay informed with real-time notifications on supplies, system, and connectivity status through the HP PrintOS mobile app, enabling you to act quickly and efficiently.

Product Specifications.

Speed

Maximin Print Speed: Fast: 98 m²/hr on plain media Normal: 29 m²/hr on coated media Best: 14.1 m²/hr on glossy media
Minimum Ink Droplet Volume:7/3 pl dual-drop weight (M, C, PK, CB, G); 6 pl single-drop weight (Y, CR, MK, CG)
Printing Resolution: Up to 2400 x 1200 optimised dpi

Print Specifications

Ink Types: Pigment-based – HP Eco cartons 1L
Ink Drops: 7/3 pl dual-drop weight (M, C, PK, CB, G); 6 pl single-drop weight (Y, CR, MK, CG)
Print Heads: 5 universal printheads (valid for all colours)
Printhead Nozzle Configuration: 3136 per colour; 28,224 in total
Printing Resolution: Up to 2400 x 1200 optimised dpi

Paper/Media Handling

Handling: One automatic roll feed, spindle-less system, optional multifunction roll accessory enabling either automatic second roll feed with smart roll-switching or take-up reel capability, optional standalone take-up reel accessory, media output bin, automatic horizontal cutter (cuts all HP Z-series printer-qualified media, including most canvas)
Roll size: 420 to 1626-mm
Grammage: 80 to 500 g/m²
Thickness: Up to 0.6 mm

Dimensions

Width: 2,605mm
Height: 1,402mm
Depth: 790mm
Weight (without ink cartridge): 170kg

Tech Spec Enquire
