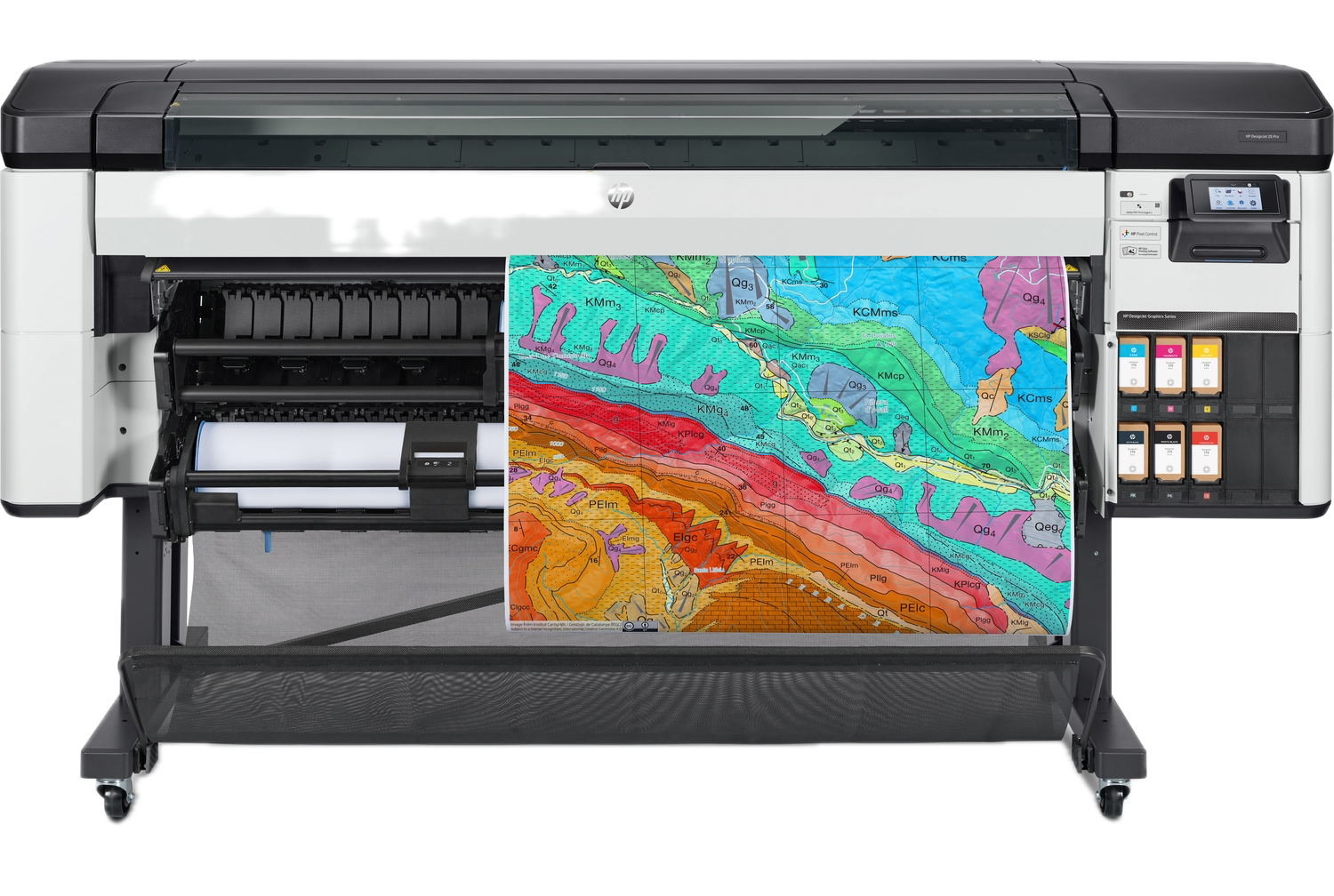

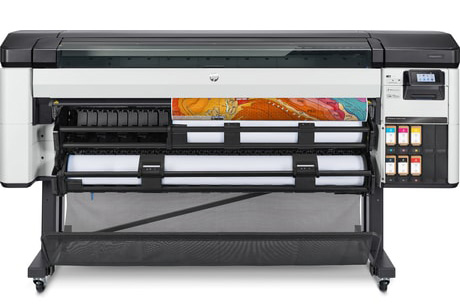

Designjet Z6 Pro

The most precise maps with
dual roll productivity

The HP DesignJet Z6 Pro features the highest level of precision and fine line detail available. You can now rely on clear PDF output and produce fine lines and text with high-definition HP printheads with this high-quality equipment. With HP Vivid Photo Inks, you can create smooth gradients and work freely with water- and fade-resistant prints.

Book a Demo

At a glance.

Precise

Produce exceptional quality prints with Adobe PDF Print Engine for clear transparencies and precise layer reproduction. High-definition HP HDNA printheads ensure sharp details, contour lines, and text, while HP Pixel Control delivers smooth gradients and vibrant colour shades. Enjoy water- and fade-resistant results with HP Vivid Photo Inks.

Productive

Save up to 40% media change time with the dual roll option for two media types and automatic switching. Improve efficiency with spindle-less, automatic roll feed and fast media handling. Boost productivity by printing twice as fast on plain paper while maintaining quality and easily managing production peaks. Save time with HP Click, the world’s easiest job submission software, enabling multiple file printing.

Secure

Ensure top-level data protection with encrypted communications and Access Control List. Manage access to printers and confidential documents using secure PIN printing. Keep devices secure and customise security preferences anytime with HP Jet Advantage Security Manager. Rely on robust network protection with HP Connection Inspector, HP Secure Boot, and Whitelisting.

Product Specifications.

Speed

Maximin Print Speed:Fast: 98 m²/hr on plain media Normal: 29 m²/hr on coated media Best: 14.1 m²/hr on glossy media

Print Specifications

Ink Types: HP Thermal Inks
Ink Drops:7/3 pl dual-drop weight (M, C, PK); 6 pl single-drop weight (Y, CR, MK)
Print Heads: 3 universal printheads (valid for all colours)
Printhead Nozzle Configuration: 3136 per colour; 18,816 in total
Printing Resolution: Up to 2400 x 1200 optimised dpi

Paper/Media Handling

Handling: One automatic roll feed, spindle-less system, optional multifunction roll accessory enabling either automatic second roll feed with smart roll-switching or take-up reel capability, optional standalone take-up reel accessory, media output bin, automatic horizontal cutter (cuts all HP Z-series printer-qualified media, including most canvas)
Roll size: 420 to 1626-mm
Grammage: 80 to 500 g/m²
Thickness: Up to 0.6 mm

Dimensions

Width: 2,605mm
Height: 1,402mm
Depth: 790mm
Weight (without ink cartridge): 169kg
