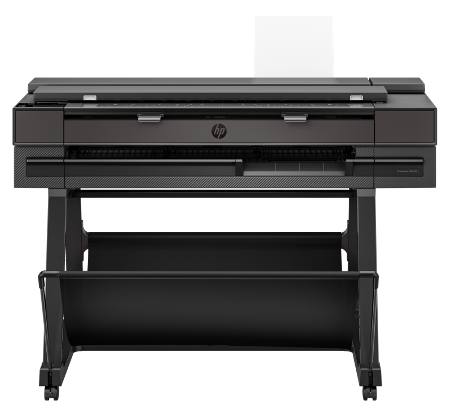

HP DesignJet T850
36″ Multi Function Printer

Maximise agility with the world’s easiest printing experience. Print A4-A1 jobs without having to manually change from roll to sheets. Achieve high-quality results in multiple print sizes.

Ideal for Architects, engineering and construction companies looking to support hybrid, flex and mobile workgroups with efficient A4, A3 and A1 printing of CAD files and renders.

Book a Demonstration

At a glance.

The Easiest

Multi-size printing in just one click

Do it all—also print A3 jobs using the integrated input tray, without manually changing from roll to sheets.
Achieve high-quality CAD and renders across various sizes with HP Flex Tech Inks.
Avoid distractions with fewer ink interventions thanks to 130/300-ml cartridges.
Simplify scan and copy workflows with personalised one-click shortcuts from the front panel.

Connected

Secure and seamless collaboration

Save time with HP Click—print in fewer steps and avoid reprinting with print preview.
Protect your printer and data from cyber threats without any effort with HP Wolf ProSecurity.
Manage your device and print from virtually anywhere using your mobile or tablet, using HP App.
Share drawings and collaborate with colleagues wherever they are with the easy-to-use front-loading scanner.

Go Beyond

Meet office and environment needs

Advance environmental goals—printer is made with at least 40% recycled plastics and recyclable supplies.
Invest in a robust and compact plotter that’s designed to last.
Reduce energy and ink waste—auto schedule printer on/off usage and enjoy efficient ink maintenance routines.

Product Specifications.

Speed

Print speed: 25 sec/page on A1, 90 A1 prints per hour

Print resolution: Up to 2400 x 1200 optimised dpi

Print Specifications

Ink types: Pigment-based (C, M, Y, mK)

Ink drop: 6 pl (C, M, Y); 12.6 pl (mK)

Printheads: 1 (C, M, Y, mK)

Printhead nozzles: 1376 per colour; 5504 in total

Line accuracy: ±0.1%

Minimum line width: 0.02 mm (via raster driver)

Max optical density: 15 L* min

Paper/Media Handling

Handling: Sheet feed, roll feed, input tray (50 sheet capacity), media bin, automatic horizontal cutter

Roll size: 369 to 914 mm

Maximum roll diameter: 100 mm

Sheet size – Input tray: 210 x 279 to 305 x 457 mm

Sheet size – Manual feed: 210 x 279 to 914 x 1676 mm

Standard sheets – Input tray: A4, A3

Standard sheets – Manual feed: A4, A3, A2, A1, A0

Grammage: 60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (input tray)

Thickness: Up to 0.3 mm

Applications: Line drawings; Renderings; Presentations; Maps; Posters

Dimensions

Printer Width: 1407mm
Printer Height: 967mm
Printer Depth: 701mm
Printer Weight (without ink cartridge): 60kg

1 2

Tech Spec Enquire BROCHURE

Versatility for your Project, your Industry

AEC
CAD and MCAD drawings
3D rendered drawings
Blueprints
Construction plans
Presentation panels
GIS maps
Info modeling charts
Satellite images
Construction site signage

GIS
GIS maps
Info modelling charts
Satellite images

Educations and Business
Education posters
Education signs
Scheduling sheets
Presentation graphics
Project charts
(e.g., Microsoft projects)
Gantt charts

Retail Stores
POS/POP posters
Marketing/ Advertisement posters
Directional signage
Brochures
Promotional signage
