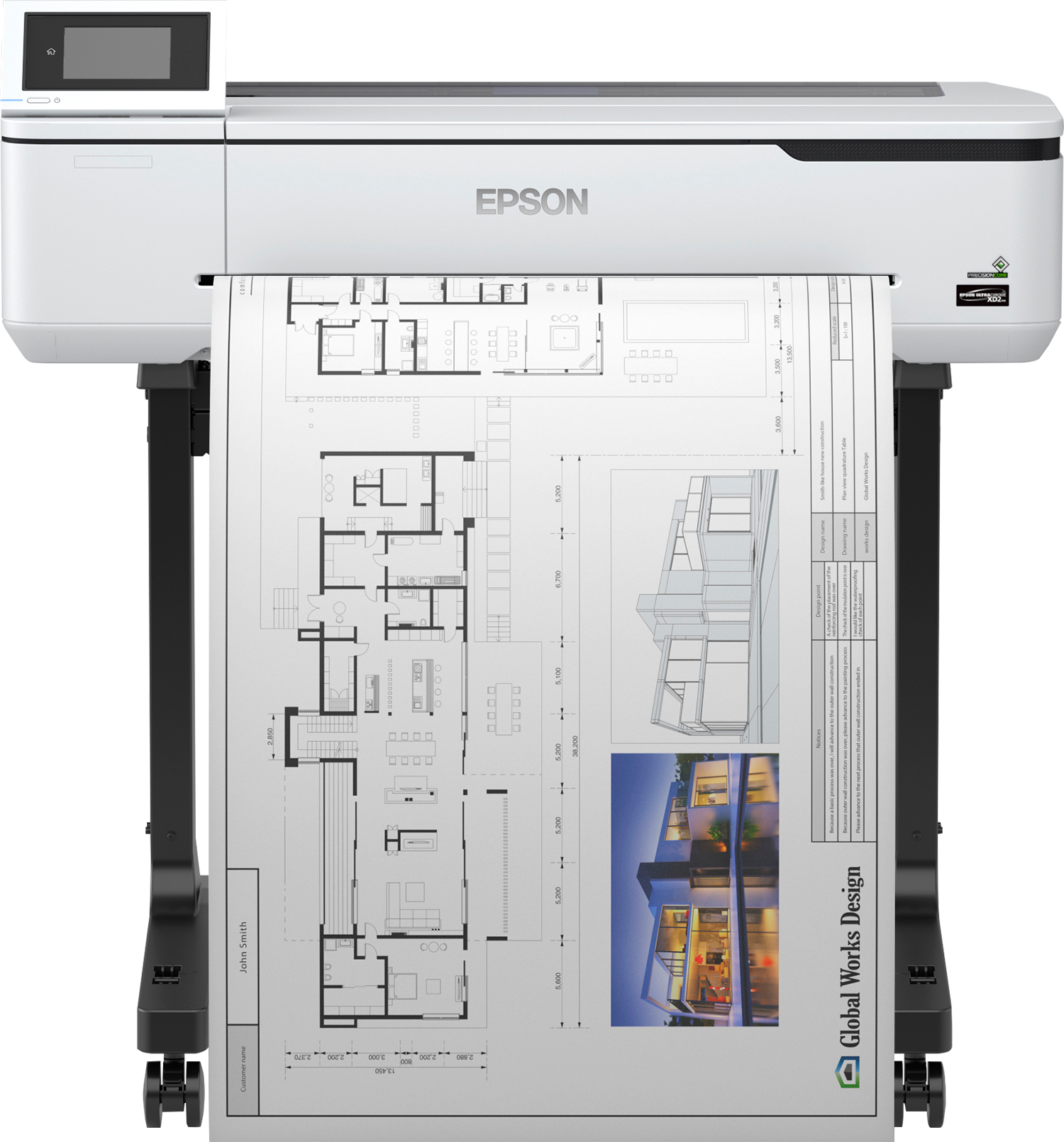

Large format printer – technical drawings
Streamline and ease the pressure of printing technical drawings and designs with this entry-level large format printer allows users to print technical and CAD drawings in great detail up to 24″.
The range is easy to use and intuitive for all types of users, using a suite of apps and clever hardware features, including wireless printing, enabling users to print directly from smartphones or tablet devices.
Print architectural, engineering and technical drawings in great detail, with ease. With its Unique Nozzle Verification Technology (NVT) that helps prevent misprints
It uses UltraChrome XD2 pigment inks which means your prints are smudge and water-resistant in addition, the SC-T3100 delivers deep blacks and crisp, dense lines — ideal for technical graphics.
Small and compact in its design
It can seamlessly change between LFP roll and sheet feed as this printer supports up to A1 cut sheets as well as rolls.
Printing Resolution: 2.400 x 1.200 dpi
Colours: Black [Pigment], Cyan [Pigment], Yellow [Pigment], Magenta [Pigment].
Nozzle Configuration: 800 Nozzles Black, 800 Nozzles per Color
Minimum Droplet Size: 4Â pl, With Variable-Sized Droplet Technology
Colour Capacity : Black [50ml, 80ml], Cyan [26ml, 50ml], Yellow [26ml, 50ml], Magenta [26ml, 50ml]
For the T3100, T3100N, T3100X
Paper Formats: A1, A2 (42.0×59.4cm), A2+, A3+, A3 (29.7×42.0 cm), A4 (21.0×29.7 cm), B1 (72.8×102.8 cm), B2 (51.4×72.8 cm), B3, B4, B5, 17″, 24″
Print Margins Sheet Media: Mode 1: 3 mm (top), 3 mm (right), 3 mm (bottom), 3 mm (left)
Print Margins Roll Media: Mode 1: 3 mm (top), 3 mm (right), 3 mm (bottom), 3 mm (left)
Media Thickness: Single Sheet 0.3 mm, Roll 0.2 mm
Compatible Paper Thickness: 0.05Â mm – 0.27Â mm
Roll capacity Diameter: Roll 1: 119 mm
Roll capacity Weight: Roll 1:Â 4,200Â g
For the T3100M-MFP
Paper Formats: A1, A3 (29.7×42.0 cm), A4 (21.0×29.7 cm), A2 (42.0×59.4cm), 24″, 17″, A5 (14.8×21.0 cm)
Automatic Document Feed: Standard (built-in)
Printable Length: Roll 18 Minimum
Roll Capacity – Diameter: Roll 1: 119 mm
Roll Capacity – Weight: Roll 1: 4,200 g
Stacker capacity: 50 Sheets
T3100
Width: 970mm
Height: 913mm
Depth: 696mm
Weight (without ink cartridge):Â 38kg
T3100N
Width: 970mm
Height: 230mm
Depth: 696mm
Weight (without ink cartridge):Â 27kg
T3100 X
Width: 970mm
Height: 245mm
Depth: 570mm
Weight (without ink cartridge):Â 38kg
T3100M-MFP
Width: 970mm
Height: 292mm
Depth: 505mm
Weight (without ink cartridge):Â 33.4kg
|  |  |  | |
|---|---|---|---|---|
| Product | Epson SC-T3100 | Epson SC-T3100N | Epson SC-T3100M | Epson SC-T3100X |
| Large format printer – technical. (with stand) | Large format printer – CAD, Technical, POP (Optional Stand) | Multi-function technical printer. Print, Copy, Scan (Optional Stand) | Desktop technical printer (optional stand) | |
| Key Features | Smallest footprint in range Wireless printing Up to 24″ CMYK Pignment Ink | Smallest footprint in range Wireless and mobile connectivity Up to 24″ (A1) CMYK Pigment Inks | Integrated top-loading scanner 2.7-metre scan length Nozzle Verification Technology | Refillable ink solution Robust dustproof design Nozzle Verification Technology |
| Paper Size | 24″ | 24″ | 24″ | 24″ |
| Ink Cartridge Volume (ml) | BK: 50/80 Cl: 26/50 | BK: 50/80 Cl: 26/50 | BK: 50/80 Cl: 26/50 | 110/350 |
| Speed (sec) | 34 | 34 | 34 | 34 |
| Media Maximum Diameter | 110 | 110 | 110 | 110 |
| Paper core | 2″ | 2″ | 2″ | 2″ |
| Auto Sheet Feeder | Yes (A3) | Yes (A3) | Yes (A3) | Yes (A3) |
| Minimum Line Width | 0.02mm | 0.07mm | 0.02mm | |
| Print Specification Datasheet | T3100-Tech Spec | T3100N-Tech Spec | T3100M-Tech Spec | T3100X-Tech Spec |
