SC T5400 Series

36″ Technical Printer

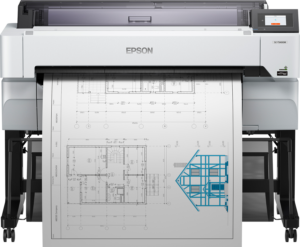

The Epson SureColor SC-T5400 MFP Technical Printer is a competitively-priced, entry-level, 36-inch, large-format, technical printer with an integrated scanner.

The T5400 has been developed for those working in engineering, construction and reprographics, who value detail, precision and flexibility.

Book a Demo

At a glance.

Ease of use

A suite of intuitive features, and supporting software tools, make this technical printer user-friendly. These include a 4.3-inch colour LCD touch panel, Wi-Fi, direct from USB printing, borderless printing, scanning direct to email, network folder or USB.

Reliability

Unique Nozzle Verification Technology (NVT) helps prevent misprints. When scanning, misprints, wrinkles and shadows are eliminated, while highlighter colours are retained.

Integrated Scanner

Features a truly integrated scanner/copier that allows the user to scan, save and reprint old maps and blueprints, which are usually stored as hard copies. With the ability to scan up to 30.5m in length, and retain highlighted areas.

Workflow Integration

A seamless integration into your existing workflow. Epson’s automatic print application supports PDF, JPEG and TIFF formats. It also supports direct print and copying without the need for a PC.

Product Specifications.

Printing Resolution

Printing Resolution: 2.400 x 1.200 dpi
First Page Out: Monochrome 22 secs, Colour 22 secs

Print Specifications

Colours: Black [Pigment], Cyan [Pigment], Yellow [Pigment], Magenta [Pigment].
Nozzle Configuration: 800 Nozzles Black, 800 Nozzles per Color
Minimum Droplet Size: 4 pl, With Variable-Sized Droplet Technology
Colour Capacity: Black, Cyan, Yellow, Magenta – 11oml, 350ml,

Paper/Media Handling

Paper Formats: A1, A2 (42.0×59.4cm), A2+, A3+, A3 (29.7×42.0 cm), A4 (21.0×29.7 cm), B1 (72.8×102.8 cm), B2 (51.4×72.8 cm), B3, B4, B5, 17″, 24″, A0, 36″
Print Margins Sheet Media: Mode 1: 3 mm (top), 3 mm (right), 3 mm (bottom), 3 mm (left)
Print Margins Roll Media: Mode 1: 3 mm (top), 3 mm (bottom)
Compatible Paper Thickness: 0.05 mm – 0.03 mm

Dimensions

Width: 1,385mm
Height: 1,060mm
Depth: 750mm
Weight (without ink cartridge): 88kg

Brochure Enquire

Epson SC SureColor T5400M – MFP Technical Printer


Product	Epson SC-T5400M-MFP
	36″ Large Format Technical Printer with integrated scanner (No stand)
Key Features	Integrated Scanner Simple top loading functionality Intuitive features Simple workflow intergration
Paper Size	36″
Ink Cartridge Volume (ml)	350ml ink cartridges
First Page Out	Monochrome 22 Seconds, Colour 22 Seconds
Print Specification Datasheet	T5400M-MFP-Tech Spec
