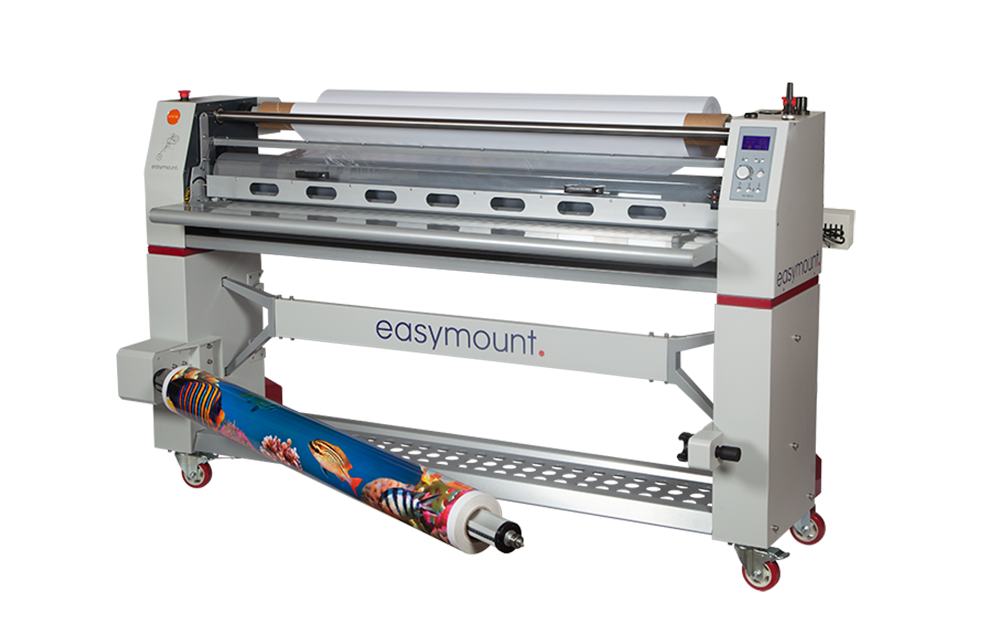

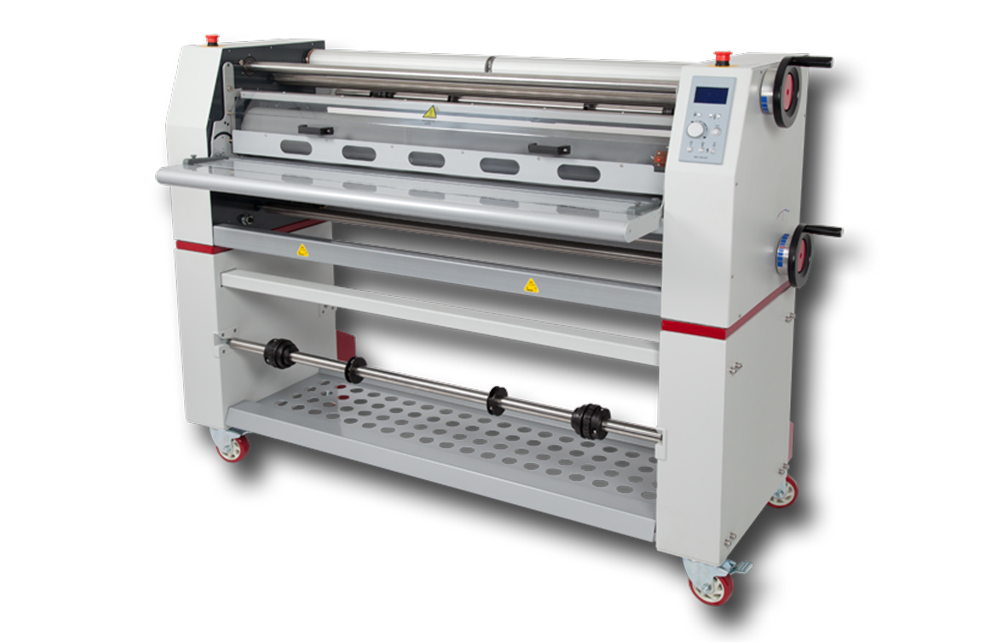

The Easymount wide format laminators range of hot and cold laminators are simple and straight forward to use either cold, single hot or double hot. The most common Easymount wide format laminator model is the single hot. It’s easy to use with heat activated laminate material rather than pressure on the cold device.
| 1200SH | 1400SH | 1600SH | 2100SH | |
| Laminating Speed (m/min / feet/min) | 6 / 20 | 6 / 20 | 6 / 20 | 6 / 20 |
| Max. Width (mm / inches) | 1200 / 47 | 1400 / 55 | 1600 / 63 | 2100 / 83 |
| Mounting Thickness (mm / inches) | 1 / 25 | 1 / 25 | 1 / 25 | 1 / 25 |
| Roller Diameter (mm / inches) | 112 / 4 | 112 / 4 | 130 / 5 | 130 / 5 |
| Warm-up Time (mins) | 10 | 10 | 10 | 10 |
| Hot Roller Heater System | Internal Infrared | Internal Infrared | Internal Infrared | Internal Infrared |
| Laminating Temp Range (°C/°F) | 0-60 / 32-140 | 0-60 / 32-140 | 0-60 / 32-140 | 0-60 / 32-140 |
| Control Panel | Digital | Digital | Digital | Digital |
| Pressure Adjustment | Manual/Gauge | Manual/Gauge | Manual/Gauge | Manual/Gauge |
| Film Core (mm / inches) | 75 / 3 | 75 / 3 | 75 / 3 | 75 / 3 |
| Power Supply AC (v, 50Hz) | 220/240 | 220/240 | 220/240 | 220/240 |
| Power Supply AC (v, 60Hz) | 110 | 110 | 110 | 110 |
| Power Supply Required (Amps) | – | – | – | – |
| Power Consumption (W) | 970 | 1310 | 1500 | 1800 |
| Width (mm / inches) | 1790 / 70 | 1990 / 78 | 2190 / 86 | 2650 / 104 |
| Depth x Height (mm /inches) | 650×1255 / 26×49 | 650×1255 / 26×49 | 650×1255 / 26×49 | 650×1255 / 26×49 |
| Gross Machine Weight (Kg / lbs) | 185 / 408 | 210 / 463 | 245 / 540 | 280 / 617 |
| Warranty | 1 Year* | 1 Year* | 1 Year* | 1 Year* |
