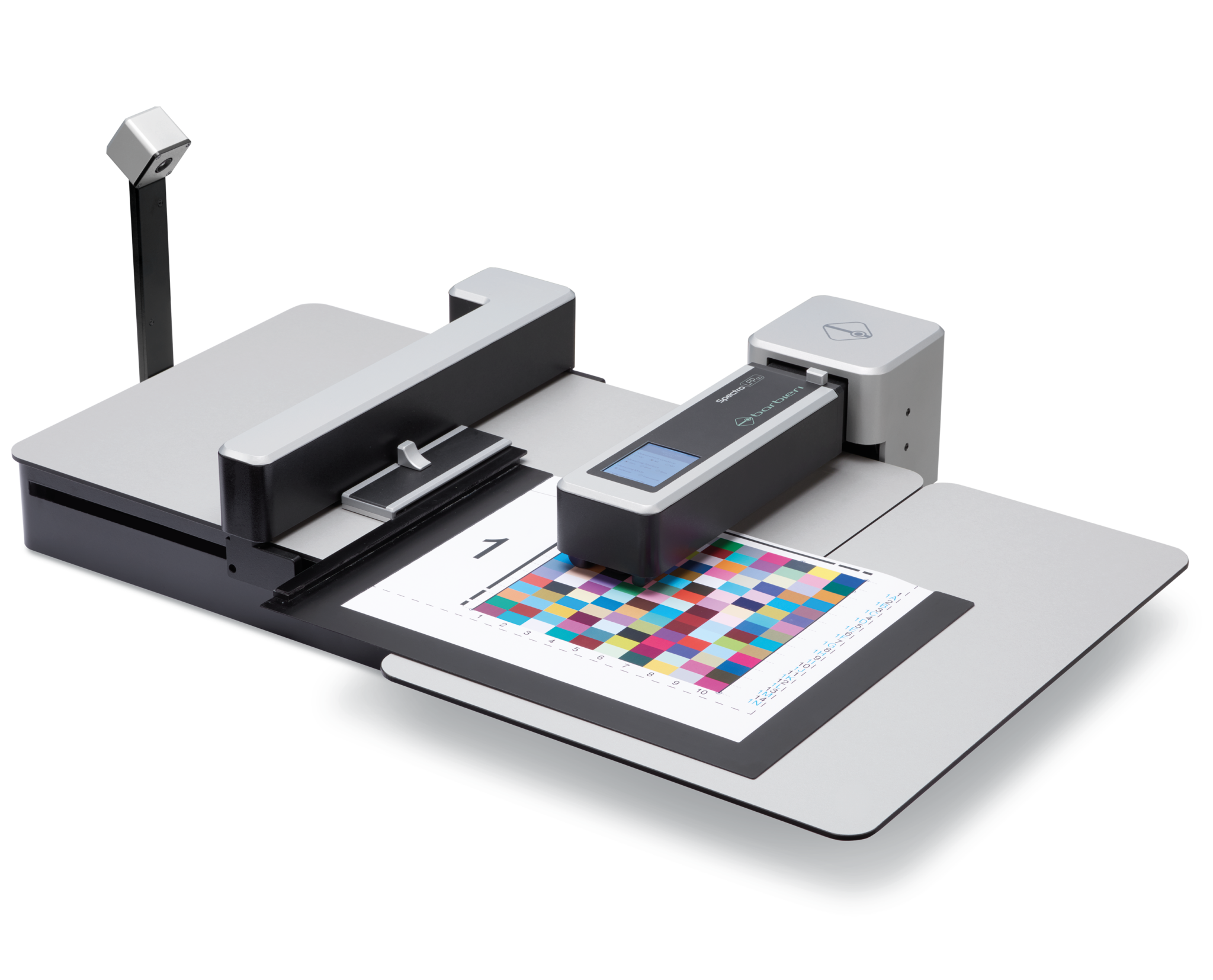

Spectro LFP qb

Automatic Reflection and Transmission Spectrophotometer for color measurement of all substrates in various digital printing applications.

Spectro LFP qb

At a glance.

Main Features

  • Fully automated reflection and transmission color chart measurements
  • Variable measurement aperture (2mm – 6 mm – 8 mm)
  • Measure reflective materials up to 20 mm
  • Built-in Barbieri qb technology including M0-M1-M2-M3 measurement conditions (ISO 13655)
  • Removable measurement head for wireless spot color measurements
  • Sensing unit for autopositioning of color charts and detection of distorted charts with integrated automatic target recognition
  • Air blowing system to prevent textile fibers from contaminating the optics
  • Electrostatic textile sample holder

Markets & Applications

  • Digital Signage printing
  • Industrial and Décor printing
  • Labels and Packaging

Materials

  • Glass
  • Plexiglas
  • Plastic plates
  • Backlit Film
  • Wrap film
  • Paper
  • Fine art paper
  • Cardboard
  • Canvas
  • Vinyl Banner
  • PVC
  • Wood
  • Stone
  • Ceramic
  • Adhesive
  • Polyester
  • Wallpaper
  • Soft Signage

Product Specifications.

Measuring Area: 305 x 230 mm (LxH)

Measurement aperture: 2 mm 6 mm 8 mm

Measurement mode: Reflection Transmission

Measurement condition: M0-M1-M2-M3

Measurement of Distorted Charts: Yes

Spectral unit: 237 x 82 x 65 mm – Weight: 1000 g

Platform: 775 x 550 x 175 (table extension included), Weight: 12,2 kg (table extension included)

Sensing unit:  260 x 83 x 53 mm – Weight: 240 g

Material Thickness Max: 20 mm

Material Type:

  • Cotton
  • Silk
  • Polyester
  • Viscose
  • Wool
  • Linen
  • Mixed fabrics
  • Various digitally printed materials

Included:

  • C5H40 Reflection Sample Holder
  • C5H50 Transmission Sample Holder

Additional:

  • C5H20 Set of 2 sample holders for thick and heavy media
  • C5H30 Frame Transmission Holder for M1 Measurement
  • C5H80 Electrostatic Textile sample holder with frame
  • C5F10-3 Polarization Filter
  • C5S05 Digital Output Control
  • C5X00 Flight Case LFP qb
